Diesel Silent Generator Set - Single & Three Phase Water Cooled (4 KVA - 25 KVA, Engine 6.5 - 30 B.H.P., Single & Double Cylinder)
Acoustic Enclosures are most trusted and reliable alternative to sound problems.
Sound proofing of container is done with high quality rock wool confirming to is 8183 of two slab of 50 mm thickness and density of 96 Kg/M3. The container is fabricated out of CRCA sheet of
18/20 SWG. The rock wool is further covered with fibre glass tissue paper and perforated painted sheet.
The door are gasketed with high quality reopen gasket to make container Dust & Vermin Proof. And its handle are lockable type.

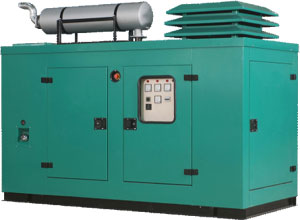

Silent Generator Single & Three Phase Water Cooled Type - 1

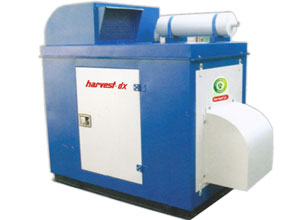

Silent Generator Single & Three Phase Water Cooled Type - 2
TECHNICAL SPECIFICATION OF SILENT DIESEL GENERATING SETS
S. N.
KVA
Phase
Cooling
Engine (B.H.P.)
No. of Cyl.
Bore (m. m.)
Generating Set (Model No.)
Dimension
L × W × H
(in mt.)
1
4.0 TO 7.5
Single
Water
6.5 to 12.0
One
85 to 102
DE - *SP SERIES
1.55 × 0.92 × 1.44
2
10 KVA
Single
Water
5.0
One
114.3
DE - 10
1.55 × 0.92 × 1.44
3
10 KVA T0 15 KVA
Single
Water
16.0 to 28.0
Two
87.5 to 102
DE - 10 To DE - 15
1.80 × 1.10 × 1.50
4
18 KVA
Single
Water
30.0
Two
114.3
DE - 18*
1.80 × 1.10 × 1.50
5
7.5 KVA
Three
Water
12.0
One
102
DE - *SP SERIES
1.55 × 0.92 × 1.44
6
12.5 KVA
Three
Water
15.0
One
114.3
R3TX - 12
1.55 × 0.92 × 1.44
7
15 KVA
Three
Water
24.0
Two
87.5 to 102
R3 - 15
1.80 × 1.10 × 1.50
8
20 KVA TO 25 KVA
Three
Water
28.0 to 30.0
Two
114.3
R3 - 20 To R3 - 25*
1.80 × 1.10 × 1.50
NOTE : - PLEASE REFER GENERATOR PRICE LIST FOR MORE INFORMATION
